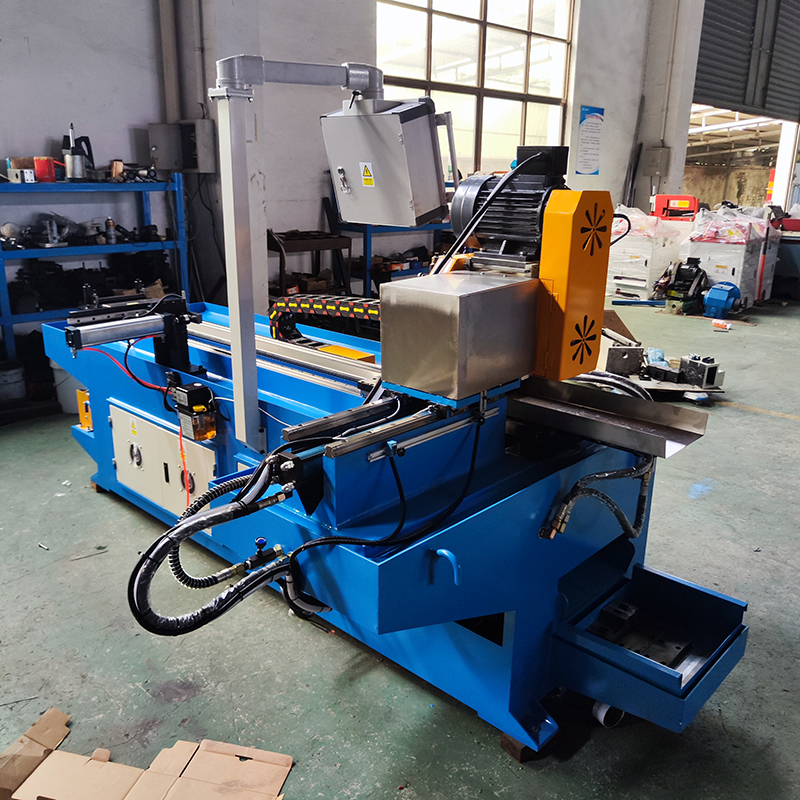

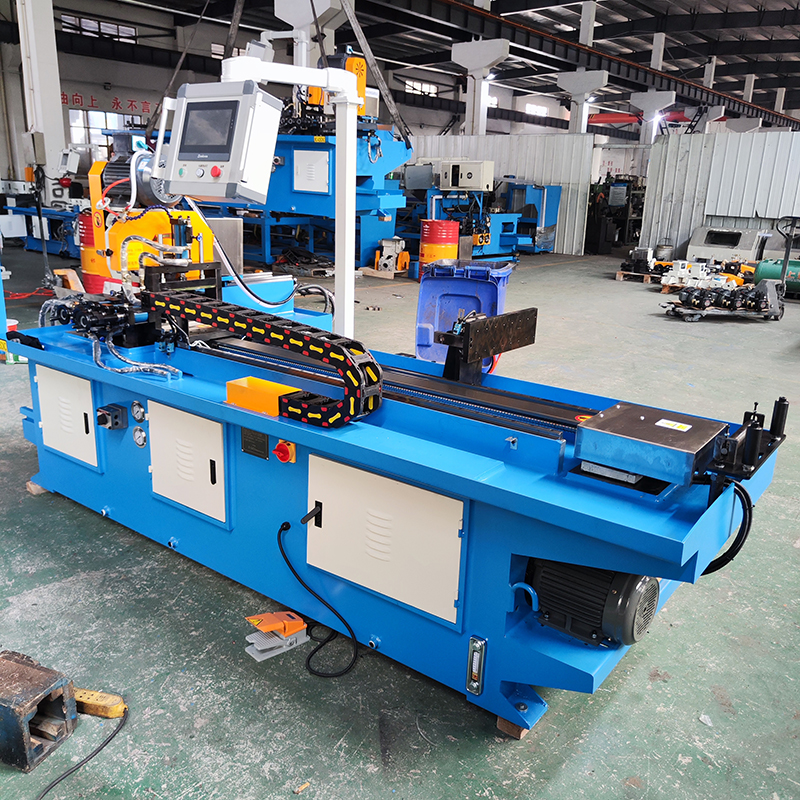

Máy cắt sắt thép

Mô tả

1. The machine can feed 1500mm of material in a single stroke (feeding length can be customized based on specific customer requirements).
2. Capable of cutting single or multiple tubes simultaneously; meets high-precision requirements for tubing.
3. Supports multiple, repeated feeding cycles.
4. Compatible with various steel tube diameters by simply changing the clamping jaws.
5. Feeding mechanism: Utilizes a servo motor and ball screw drive; features self-lubricating linear guide rails and an automatic oil pump that lubricates the cutting head and feeding rails during operation, ensuring a longer service life. The feeding clamp assembly uses dual-cylinder clamping and includes a material-lifting function to prevent surface scratches.
6. Tube cutting: Employs a vertical cutting configuration driven by a servo motor and ball screw, utilizing self-lubricating linear guide rails.
7. Structure and operation: Tubes are placed on the machine bed, followed by automatic clamping, feeding, and cutting in a continuous cycle.
8. Feeding and cutting precision: ±0.25mm.
9. Uses self-lubricating bearings and self-lubricating connecting shafts to prevent damage to the machine structure.
10. The “505” full-gear cutting head features a horizontal motor and multiple sets of meshing gears, resulting in greater stability, superior wear resistance, and increased power.
11. Cooling system enables prolonged machine operation and extends saw blade life.
12. Mechanical motion components: Equipped with a CNC-controlled automatic oil lubrication system, ensuring long-term, maintenance-free operation and an extended service life.
13. Servo-driven ball screw mechanism moves the feeding carriage along linear guide rails (rather than cylindrical guide posts, ensuring a more stable platform); delivers high precision, high speed, and stable feeding, resulting in smooth, cool-cut surfaces.
14. High cutting precision; produces perfect cuts with no burrs.
15. Includes a remnant retraction function, allowing the cut-off remnant to be shorter than the finished workpiece length.
    Advantages

High cutting rigidity, fast cutting speeds, and a high degree of automation. The equipment is easy to maintain, which extends its service life.

Our equipment features a thickened, oversized housing. The clamping mechanism, base, and cast iron clamping components are made of heavy-duty ductile iron castings; this ensures superior stability and eliminates vibration during the cutting process.
