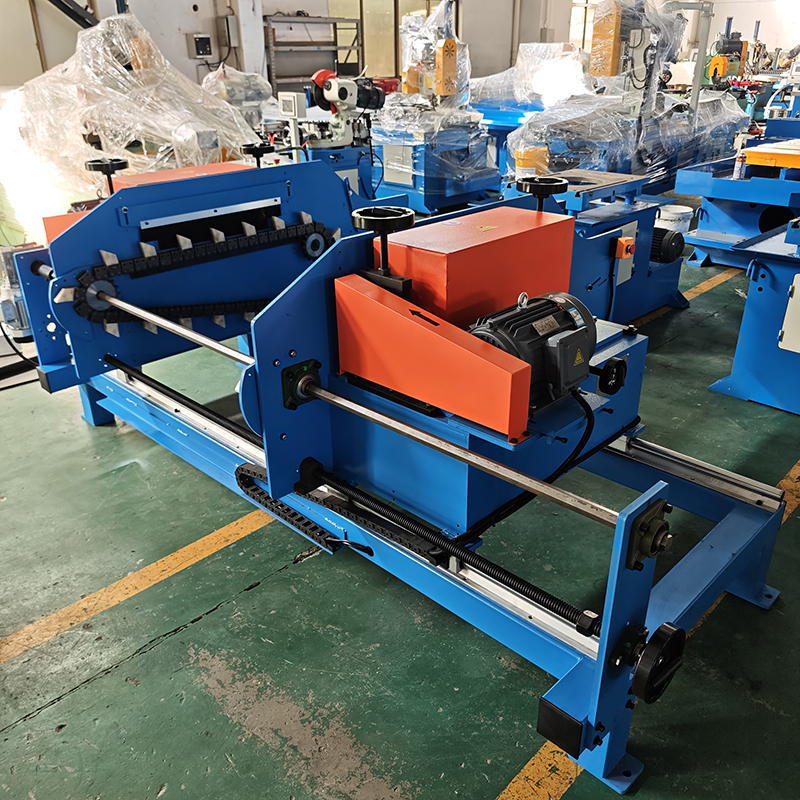

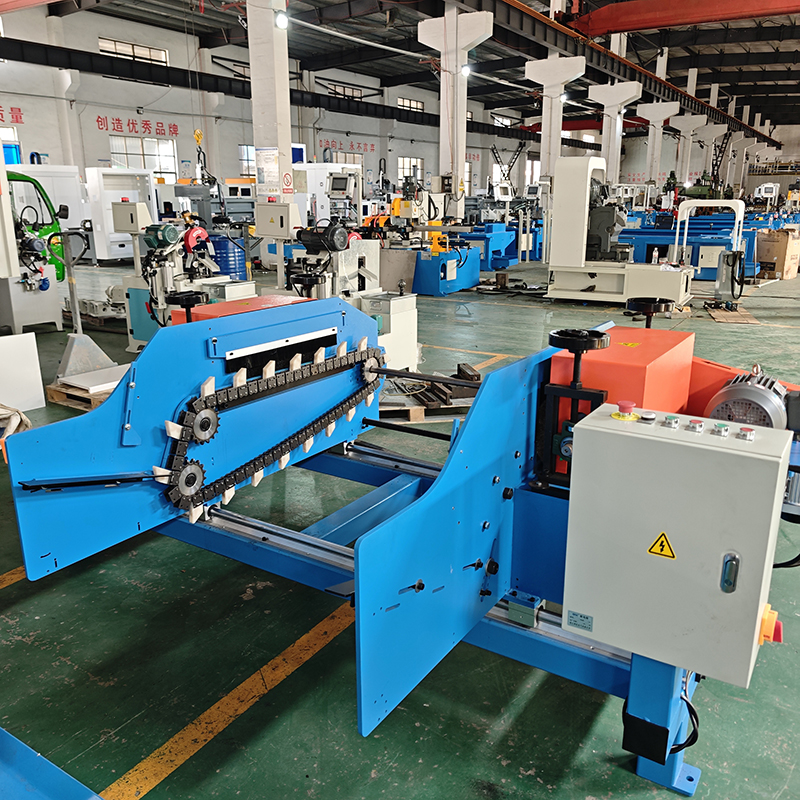

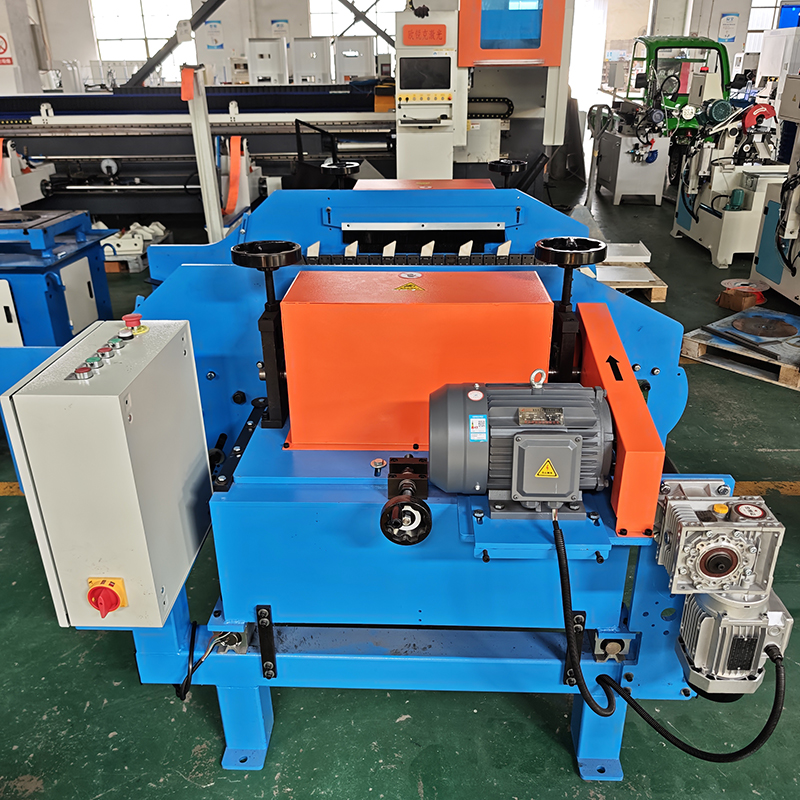

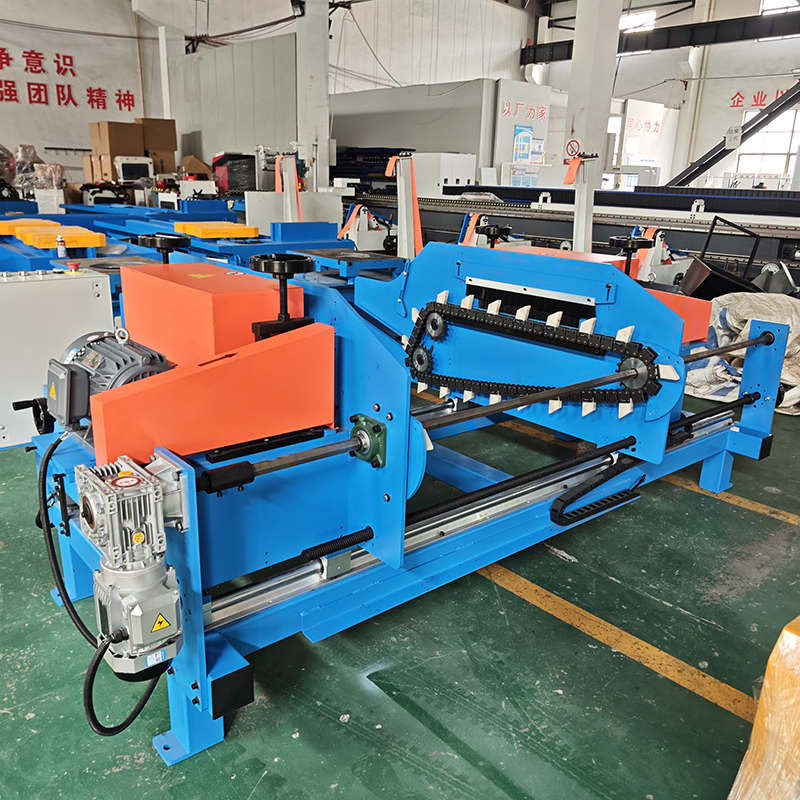

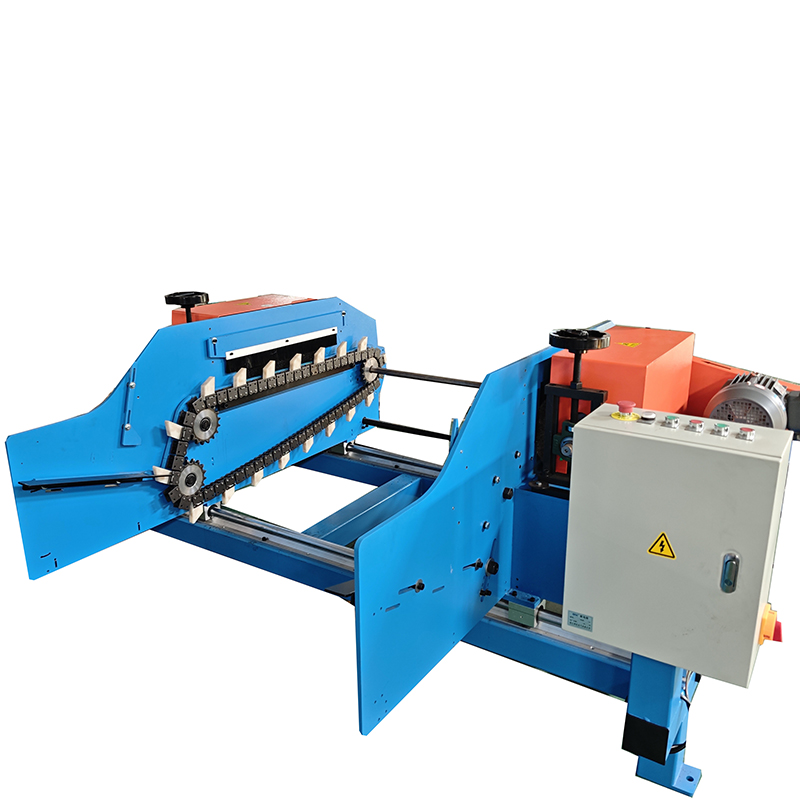

Double-End Pipe Deburring Machine (Chain Type)
Product Description

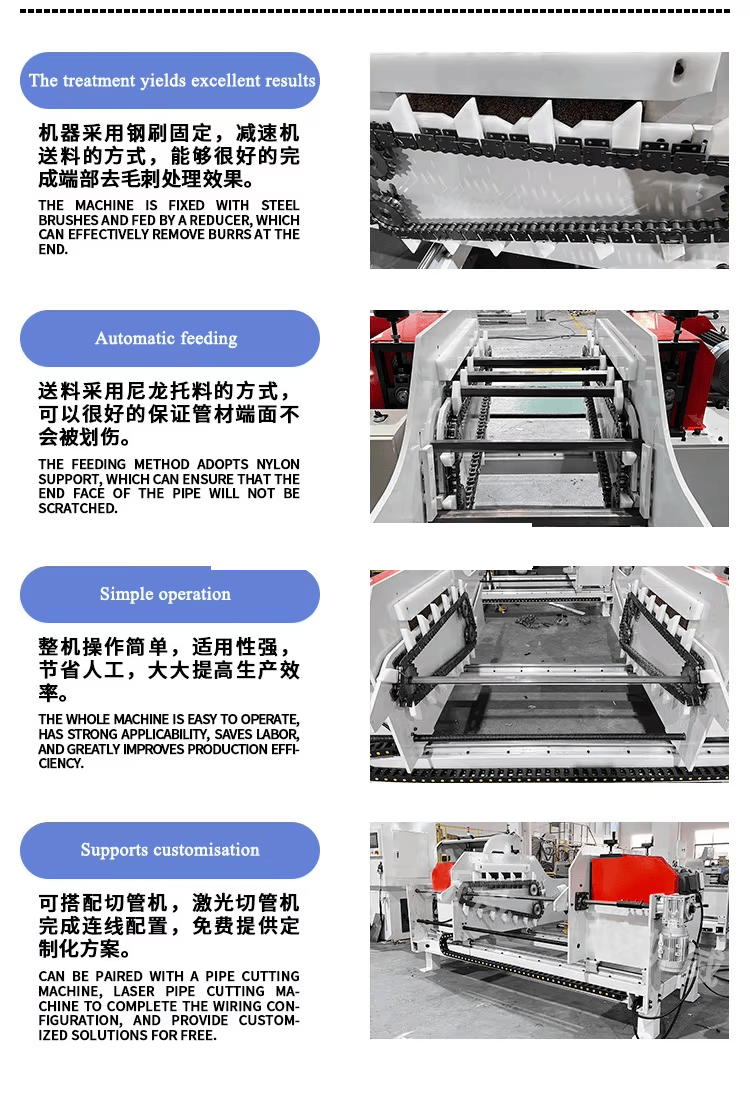

The whole machine is welded with thick steel plate, stable structure and low vibration. The feeding chain is equipped with wear-resistant clamping blocks to hold the pipe tightly without scratching the workpiece. The handwheel adjustment structure can quickly adapt to different pipe diameters. The independent electric control box is equipped with emergency stop button for safe operation.
It is widely used in pipe processing workshops, hand trolley frame production, scaffolding pipe processing, air conditioning refrigeration pipe manufacturing and other industries. It greatly improves the efficiency of pipe end finishing and replaces manual grinding.
Technical Parameters
|
Type
|
Double Heads Deburring Machine
|
|
Max. O.D.
|
φ8mm-φ100mm
|
|
Deburring material
|
Rod, pipe, wire,ect
|
|
Length for rod/pipe
|
150mm-1000mm(can be customized)
|
|
Steel Brush Specification
|
300X455mm
|
|
Steel Brush Material
|
SUS304-0.3mm
|
|
Working Speed
|
30-120PCS/Min(can be adjusted)
|
|
Main motor power
|
4KW x2
|
|
Feeding Motor
|
0.75KW
|
|
Voltage
|
380V 50HZ 3-phase(can be customized)
|
|
Size
|
3200*1850*1350mm
|
|
Weight
|
1000kgs
|
Application Scenarios
- Pipe cutting and finishing for hand truck / trolley frame manufacturing
- Scaffolding pipe processing
- Air conditioner cooling copper pipe deburring
- Automotive metal pipe processing
- Hardware pipe fitting production
FAQ
- What material can this deburring machine process?
It can process carbon steel, stainless steel, copper and aluminum round tubes.
- What is the range of pipe diameter?
The standard model works for tubes from 10mm to 40mm. Custom size available.
- Can it do both inner and outer burr removal?
Yes, it removes inner and outer burrs and completes chamfering on both pipe ends at one time.
- Is the feeding speed adjustable?
Yes, the feeding speed can be adjusted according to different pipe materials.
- Can you customize the machine?
We support OEM customization for special pipe size and voltage.
